Exploring the Precision of 3D-Printed Leather Stamps with Bambu Lab’s A1 Mini
Recently, I've dived deep into the realm of 3D printing, especially focusing on how it can enhance my leather stamp making. Bambu Lab sent me their A1 Mini printer and a variety of filaments to experiment with, and I’ve been exploring just how precise we can get with these tools.
Check out the full video now:
The Rise of Accessible 3D Printing
In the past decade, 3D printing has evolved from a niche hobby to a widely accessible technology. Small, affordable 3D printers like the Bambu Lab A1 Mini have made it possible for crafters and hobbyists to experiment with 3D printing in their own homes. This small (mini?) printer, despite its compact size, is perfect for creating leather stamps, which generally don’t require a large printing area. The A1 Mini’s automatic calibration and user-friendly interface make it ideal for focusing on the creative aspects of 3D printing rather than getting bogged down by technical details.
Introducing Our Filament Contenders
For this project, I tested four different filaments: PLA Basic, PLA CF, PETG, and PETG CF. Each has distinct properties that affect the quality and durability of the leather stamps.
PLA Basic: This filament is my go-to for its ease of printing, versatility and reliability. It’s available in a variety of colors and is the only one that prints with an 0.2mm nozzle, which is essential for achieving fine details in the stamps.
PLA CF: Infused with carbon fibers, this filament offers added rigidity and strength. However, it is more brittle (so don’t drop or hit it) and not compatible with the 0.2mm nozzle, limiting its use for detailed stamps.
PETG: Known for its strength, PETG is a robust filament but can be finicky to work with. It sometimes results in small defects in the final prints, which can be an issue for intricate designs.
PETG CF: This filament combines the strength of PETG with added carbon fibers, providing a balance of durability and a less glossy finish. It’s ideal for larger, more frequently used stamps, although it doesn’t match the detail of PLA Basic.
The Standout: PLA Basic
Despite being the weakest in terms of sheer strength, PLA Basic excels because it can be printed with an 0.2mm nozzle, allowing for extraordinary detail. The ability to switch to a finer nozzle on the A1 Mini in under a minute is a significant advantage. This feature sets PLA Basic apart, making it the top choice for intricate leather stamps.
The Printing Process
For my tests, I used vegetable-tanned (vegtan) leather, which I soaked fully to ensure proper imprinting. While wetting the leather helps achieve a clearer print with less force, you can print on dry vegetable tanned leather also, though this requires more pressure and risks damaging the stamp and leather.
Aligning the stamp correctly in the press is crucial to ensure even force distribution. If misaligned, the imprint may be uneven. Adding a larger base to the stamp can help distribute the force more evenly.
Initial Tests and Results

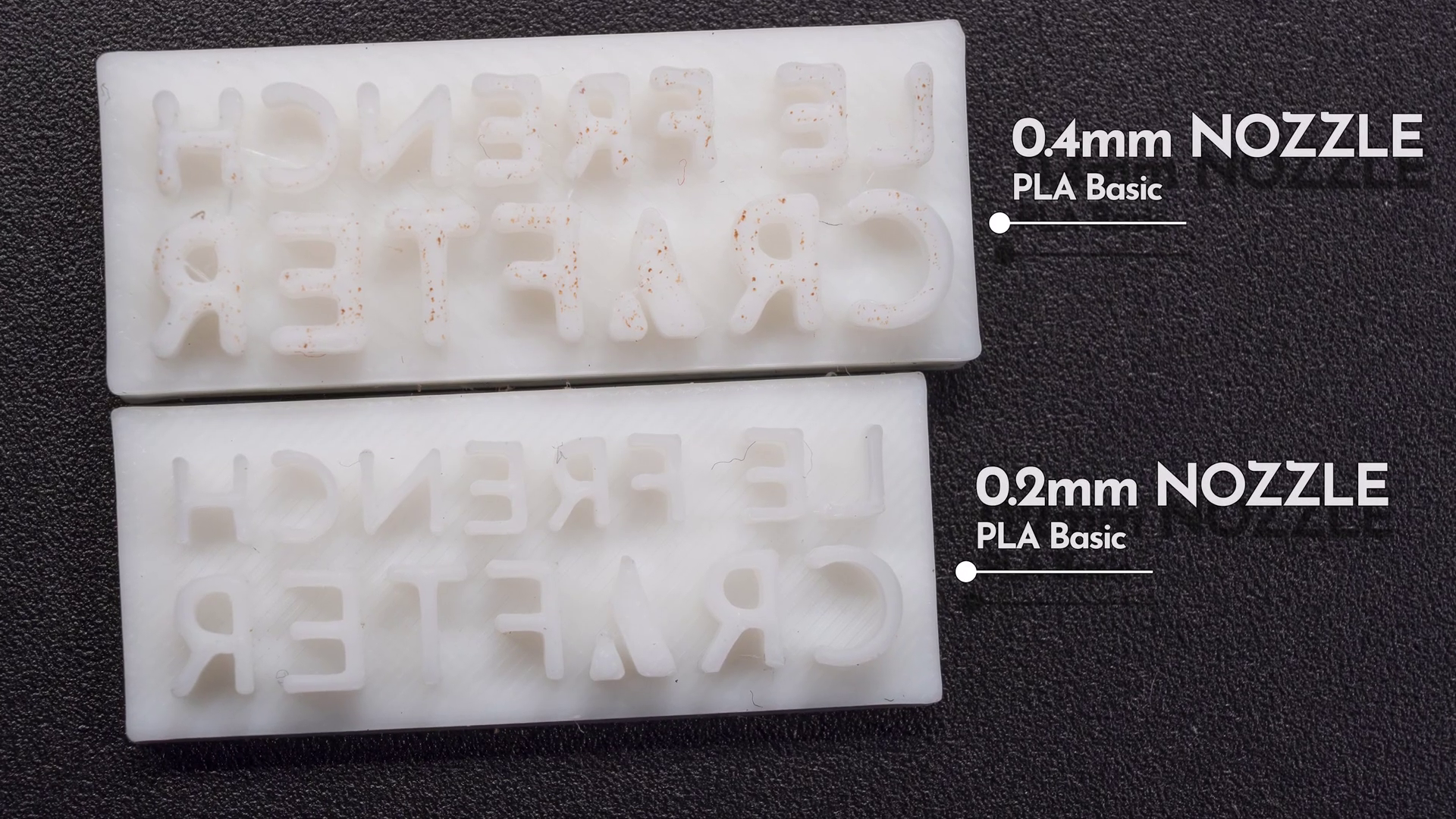

The initial tests with the A1 Mini were promising. The printer produced stamps with ease, resulting in clear and detailed imprints on 1.2mm thick leather. The detail achieved with the 0.4mm nozzle was already impressive, but the 0.2mm nozzle truly shone, delivering exceptional clarity and precision.
Filament Performance
After giving the leather time to dry, here’s how the filaments ranked:
PLA Basic: The champion for its compatibility with the 0.2mm nozzle, offering fine detail, reliability, and cost-effectiveness.
PETG CF: A strong and durable option, ideal for larger stamps and frequent use, though it sacrifices some precision.
PLA CF: Reliable and strong, but its incompatibility with the finer nozzle limits its use for detailed work.
PETG: Provides strong results but is prone to nozzle marks, requiring extra finishing work.
Creating a Real-World Stamp
To demonstrate the practical application, I created a stamp using my brother-in-law’s brewery logo. Using Tinkercad, a free online 3D modeling software, I transformed the vectorized logo into a 3D shape, resized it, and added a baseplate. The design included fine details like the sun's star streaks and the bear’s head, perfect for testing the precision of the stamp.
After exporting the STL file, I used Bambu Studio to slice the model into printable layers. For this test, I opted for the highest accuracy settings, even though it was overkill, to see how much detail the A1 Mini could capture.
The final stamp from the A1 Mini printed out clean, with crisp lines and clear details. Both embossed and debossed portions came out nicely, and the stamp held up well under a 1.5-ton press. While some detail was lost in the sun stars, the overall result was impressive.
Printing a large stamp onto leather using a 3D printed PLA stamp.
The Bambu Lab A1 Mini Experience
The A1 Mini impressed me for several reasons. It automatically calibrates, minimizing user error, and its compact size makes it suitable for small spaces like my Parisian flat. Additionally, its affordability makes it accessible to crafters who want to explore 3D printing without breaking the bank.
Conclusion
If I had to choose two filaments for leatherwork stamps, PLA Basic and PETG CF would be my top picks. PLA Basic is perfect for delicate, detailed work thanks to its compatibility with the 0.2mm nozzle. PETG CF offers durability and strength, making it ideal for larger stamps that will see extensive use. The Bambu Lab A1 Mini has proven to be an excellent tool for this purpose, combining ease of use, precision, and affordability.
Hopefully, this exploration into 3D-printed leather stamps has been insightful. Stay tuned for more crafting adventures as I continue to experiment with this technology!
